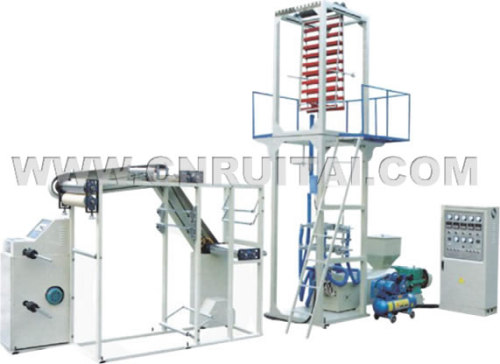

XT-FB-BD50 Concave-Convex Button Self-sealed Bag Color Striped Film Blowing Machine

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: XT-FB-BD50

Production Capacity: 15 sets/ month

Delivery Date: 30 days after receiving dow...

Use: Others

Brand Name: RUITAI

Means of Transport: Ocean

Packing: wooden case

Plastic Type: PP/PE

Shaft Design: Others

Power: 16-20kw

Use:
It is suitable for blowing the plastic film of low density polyethylene(LDPE), which is widely used for packing food stuff, garment, hardware,

Use:

It is suitable for blowing the plastic film of low density polyethylene(LDPE), which is widely used for packing food stuff, garment, hardware, adornments, and daily-use articles, etc.

Feature:

1. The concave-convex button plastic bag made by this machine set can be opened and closed at once.
It is easy to lock and unlock and convenient for storage of articles.

2. The screw stem and cylinder are made of 38CRMOALA high quality alloy steel after fine finishing
and nitriding treatment, which has high hardness, strong resistance to corrosion, durable service.

  3. The die head is plated with hard chrome, of divided-flow type structure,
       with even and smooth discharging. The blower is of labyrinth structure, with even air output and
       fine cooling effect.

4. The coiling unit adopt swinging rewinding mode, which rational speed can be adjusted freely.

Model	XT-FB-BD50
Diameter of screw stem	50mm
Mahor diameter ratio of screw stem	28:1(L/D)
Rational speed of screw stem	10-100r/min
Specification of die head	￠80mm, ￠120mm, ￠160mm, ￠200mm,￠240mm,￠300mm
Thickness of products	0.018-0.10mm
Folding width of products	80-450mm
Main motor power	7.5kw
Heating power	16kw
Output	20kg/h
Weight	2.2t
Dimension	5500x1800x3400mm
